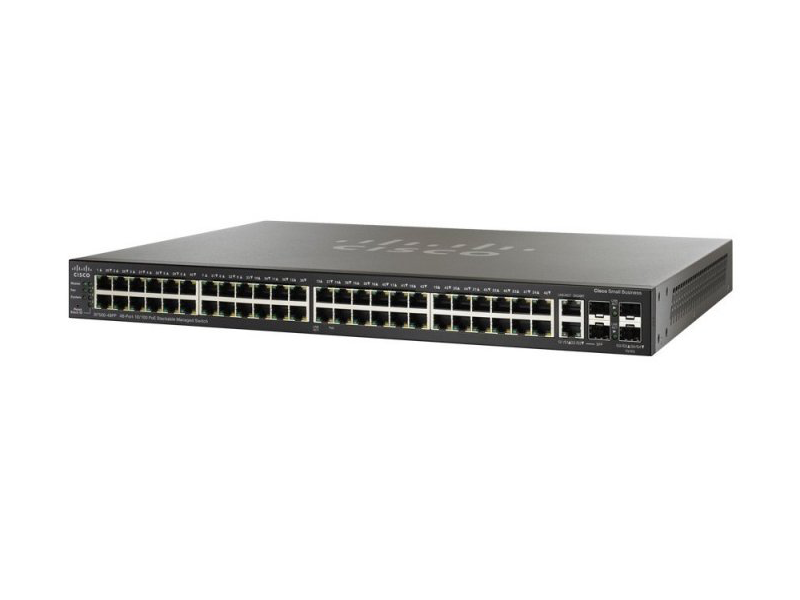

SF300-48PP-K9
.png)
.png)
Lượt xem : 762
SF300-48PP-K9
0
General Subtype Fast Ethernet Ports 48 x 10/100 (PoE+) + 2 x combo Gigabit SFP + 2 x 10/100/1000 Power Over Ethernet (PoE) PoE+ PoE Budget 375 Capacity ACL rules: up to 512 Jumbo Frame Support 9216 bytes Authentication Method RADIUS, Secure Shell (SSH), TACACS+ RAM 128 MB MAC Address Table Size 16K entries Authentication Method Secure Shell (SSH), RADIUS, TACACS+ Power Over Ethernet (PoE) PoE+ Status Indicators Port transmission speed, system, link/activity Encryption Algorithm SSL Routing Protocol Static IPv4 routing Jumbo Frame Support 9216 bytes PoE Budget 375 W Manufacturer Cisco Camera Installed Size 16 MB Networking MAC Address
Liên hệ
General
Subtype
Fast Ethernet
Ports
48 x 10/100 (PoE+) + 2 x combo Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE)
PoE+
PoE Budget
375
Capacity
ACL rules: up to 512
Jumbo Frame Support
9216 bytes
Authentication Method
RADIUS, Secure Shell (SSH), TACACS+
RAM
128 MB
MAC Address Table Size
16K entries
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Power Over Ethernet (PoE)
PoE+
Status Indicators
Port transmission speed, system, link/activity
Encryption Algorithm
SSL
Routing Protocol
Static IPv4 routing
Jumbo Frame Support
9216 bytes
PoE Budget
375 W
Manufacturer
Cisco
Camera
Installed Size
16 MB
Networking
MAC Address Table Size
16K entries
Subcategory
network hubs and switches
Subtype
Fast Ethernet
Form Factor
desktop, rack-mountable
Type
switch
Advanced Switching
Layer 3
Features
16MB packet buffer, Access Control List (ACL) support, Jumbo Frames support, MLD snooping, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Unicast Storm Control, BOOTP support, VLAN support, Weighted Round Robin (WRR) queuing, firmware upgradable, layer 2 switching, layer 3 switching, port mirroring, Broadcast Storm Control, DHCP support, DiffServ support, DoS attack prevention, Energy Efficient Ethernet, IGMP snooping, IPv6 support
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP)
Jumbo Frame Support
9216 bytes
Ports Qty
48
Manageable
Yes
Routing Protocol
static IPv4 routing
PoE Budget
375
Remote Management Protocol
CLI, HTTP, SSH, SSH-2, Telnet, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3
Power Over Ethernet (PoE)
PoE+
Power Device
Nominal Voltage
AC 120/230 V
Frequency Required
50/60 Hz
Type
internal power supply
Interface Provided
Qty
1, 2, 4, 48
Comments
PoE+, management
Miscellaneous
Compliant Standards
UL 60950, CSA 22.2 No. 60950, FCC Part 15 A
Rack Mounting Kit
included
Encryption Algorithm
SSL
MTBF
113692 hour(s)
Height (Rack Units)
1 m
MTBF
113,692 hour(s)
Environmental Parameters
Humidity Range Storage
10 - 90% (non-condensing)
Min Storage Temperature
-4 °F
Max Storage Temperature
158 °F
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Header
Brand
Cisco
Product Line
Cisco Small Business
Model
SF300-48PP
Localization
Chinese (simplified), English, French, German, Italian, Japanese, Spanish
Country Kits
United Kingdom
Packaged Quantity
1
Compatibility
Mac, PC
Cable Details
Type
serial cable
Included Qty
1
Ports
Type
10/100 (PoE+)
Qty
48
Ports (2nd)
Type
combo Gigabit SFP
Qty
2
Performance
Type
forwarding performance (64-byte packet size), switching capacity
Value
13.1 Mpps, 17.6 Gbps
Ports (3rd)
Type
10/100/1000
Qty
2
Capacity
Type
ACL rules
Value
up to 512
Dimensions & Weight
Width
17.3 in
Depth
13.8 in
Height
1.8 in
Weight
11.99 lbs
Service & Support
Type
limited lifetime warranty
Service & Support Details
Service Included
phone consulting, replacement, web support
Full Contract Period
1 year, lifetime
Response Time
next business day
Type
limited warranty, technical support
General
Manufacturer
Cisco
