WS-C2960C-8TC-S
WS-C2960C-8TC-S
2387
WS-C2960C-8TC-S Overview Cisco Catalyst 2960 Compact 8 ports switch supports easy deployment and reduces cabling costs. They help to extend services whenever and wherever you want. Quick Specs Figure 1 shows the appearance of WS-C2960C-8TC-S. Table 1 shows the Quick Specs. Product Code WS-C2960C-8TC-S Feature Set LAN Lite Uplink Interfaces 2 x 1G copper or 2 x 1G SFP Ports 8 x 10/100 Fast Ethernet Forwarding Bandwidth 10 Gbps RAM 128 MB Flash Memory 64 MB Dimensions 4.6 cm x 26.9 cm x 23.9 cm Package Weight 4.38 Kg Product Details Figure 2 shows the front panel of WS-C2960C-8TC-S. Note:
WS-C2960C-8TC-S Overview
Cisco Catalyst 2960 Compact 8 ports switch supports easy deployment and reduces cabling costs. They help to extend services whenever and wherever you want.
Quick Specs

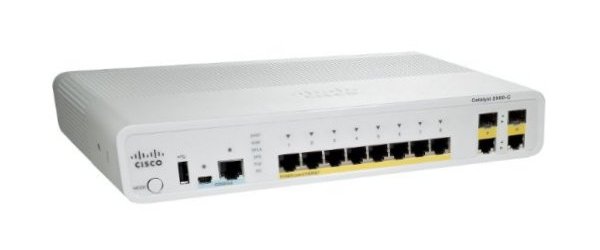

Figure 1 shows the appearance of WS-C2960C-8TC-S.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C2960C-8TC-S |
|
Feature Set |
LAN Lite |
|
Uplink Interfaces |
2 x 1G copper or 2 x 1G SFP |
|
Ports |
8 x 10/100 Fast Ethernet |
|
Forwarding Bandwidth |
10 Gbps |
|
RAM |
128 MB |
|
Flash Memory |
64 MB |
|
Dimensions |
4.6 cm x 26.9 cm x 23.9 cm |
|
Package Weight |
4.38 Kg |
Product Details
Figure 2 shows the front panel of WS-C2960C-8TC-S.
Note:
|
① |
Mode button |
④ |
LEDs |
|
② |
USB mini-Type B (console) port |
⑤ |
10/100 PoE ports |
|
③ |
RJ-45 console port |
⑥ |
Uplink ports |
·The LEDs include SYST, STAT, DPLX, and SPD LED.
Table 2 shows SYST LED Description
|
Color |
System Status |
|
Off |
System is not powered on. |
|
Green |
System is operating normally. |
|
Amber |
System is receiving power but is not operating properly. |
Table 3 shows STAT, DUPLX, and SPD LEDs Description
|
LED |
Port Mode |
Description |
|
STAT |
Port status |
The port status. This is the default mode. |
|
DUPLX |
Port duplex status |
The port duplex mode: full duplex or half duplex. |
|
SPD |
Port speed |
The port operating speed: 10, 100, or 1000 Mb/s. |
Figure 3 shows the back panel of WS-C2960C-8TC-S.
Note: ① Power Connector
The Accessories
Table 4 shows some recommended cables and SFP modules.
|
Models |
Descriptions |
|
CAB-CONSOLE-USB |
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
|
CAB-CONSOLE-RJ45 |
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
|
GLC-SX-MM GE SFP, LC connector SX transceiver |
|
|
GLC-ZX-SM |
1000BASE-ZX SFP |
|
GLC-BX-D |
1000BASE-BX SFP, 1490NM |
|
GLC-BX-U |
1000BASE-BX SFP, 1310NM |
|
GLC-FE-100FX |
100BASE-FX SFP for FE port |
|
GLC-FE-100LX |
100BASE-LX SFP for FE port |
|
GLC-FE-100BX-D |
100BASE-BX10-D SFP |
|
GLC-FE-100BX-U |
100BASE-BX10-U SFP |
WS-C2960C-8TC-S Specification
WS-C2960C-8TC-S Specification |
|
|
Manufacturer: |
Cisco |
|
Product ID: |
WS-C2960C-8TC-S |
|
Product Description: |
2960C Switch 8 FE, 2 x Dual Purpose Uplink, LAN Lite |
|
Product Type: |
Ethernet Switch |
| Marketing Information | |
|---|---|
|
The Cisco Catalyst 3560-C and 2960-C Series compact switches are small form-factor Gigabit Ethernet and Fast Ethernet switches designed for deployments outside the wiring closet. Enterprise and commercial customers can deliver advanced security services, unified communications, wireless, IP video cameras, and other applications for the office workspace, branch office, classroom, cruise ship, and other wiring-constrained environments. |
|
| Interfaces/Ports | |
|
Total Number of Network Ports: |
8 |
|
Token Ring Port: |
No |
|
LRE Port: |
No |
|
Uplink Port: |
No |
|
USB: |
Yes |
|
Number of RJ-45 Ports: |
8 |
| Media & Performance | |
|
Ethernet Technology: |
Gigabit Ethernet |
|
Network Technology: |
10/100/1000Base-T 10/100Base-TX |
| I/O Expansions | |
|
Number of Total Expansion Slots: |
2 |
|
Expansion Slot Type: |
SFP |
|
Shared SFP Slot: |
Yes |
|
Number of SFP Slots: |
2 |
| Network & Communication | |
|
Layer Supported: |
2 |
| Management & Protocols | |
|
Manageable: |
Yes |
|
Management: |
|
| Memory | |
|
Standard Memory: |
128 MB |
|
Memory Technology: |
DRAM |
|
Flash Memory: |
64 MB |
| Power Description | |
|
PoE (RJ-45) Port: |
Yes |
|
Input Voltage: |
110 V AC 220 V AC |
|
Power Source: |
Power Supply |
| Physical Characteristics | |
|
Form Factor: |
Rack-mountable Desktop Wall Mountable |
|
Height: |
1.8" (4.6 cm) |
|
Width: |
10.6" (26.9 cm) |
|
Depth: |
9.4" (23.9 cm) |
|
Weight (Approximate): |
4.10 lb (1.86 Kg) |
|
Package Weight:: |
9.66 lb (4.38 Kg) |
